EV Charging Stations Conduit Requirements for High-Power Installations

1. Introduction

1.1 Growing Demand for High-Power EV Charging Stations

The global shift toward electric vehicles (EVs) has accelerated the need for high-power charging infrastructure. With automakers like Tesla, Ford, and Rivian rolling out EVs capable of accepting 150kW to 350kW charging speeds, drivers increasingly expect rapid charging times comparable to refueling gasoline vehicles. Governments and private enterprises are investing heavily in DC fast charging (DCFC) networks, particularly along highways and urban hubs, to support long-distance travel and reduce “range anxiety.” By 2030, the U.S. alone aims to deploy 500,000 public chargers, many of which will require 480V+ systems to meet power demands.

1.2 Importance of Proper Conduit Systems in EV Installations

Behind every reliable high-power EV charging station lies a robust electrical conduit system. Conduits—protective channels for wiring—play a critical role in ensuring safety, longevity, and compliance. They shield high-voltage cables from environmental hazards (e.g., moisture, UV radiation, physical damage) and prevent overheating, which is vital for 480V+ installations generating significant heat. Poorly designed conduit systems risk electrical faults, fire hazards, and costly downtime, making them a cornerstone of EV infrastructure planning.

2. Understanding EV Charging Station Types and Power Levels

Electric vehicle charging stations vary significantly in power output, installation complexity, and infrastructure requirements. This section breaks down the three primary categories of EV chargers, their applications, and the implications for conduit systems, ensuring readers grasp how power levels dictate design choices.

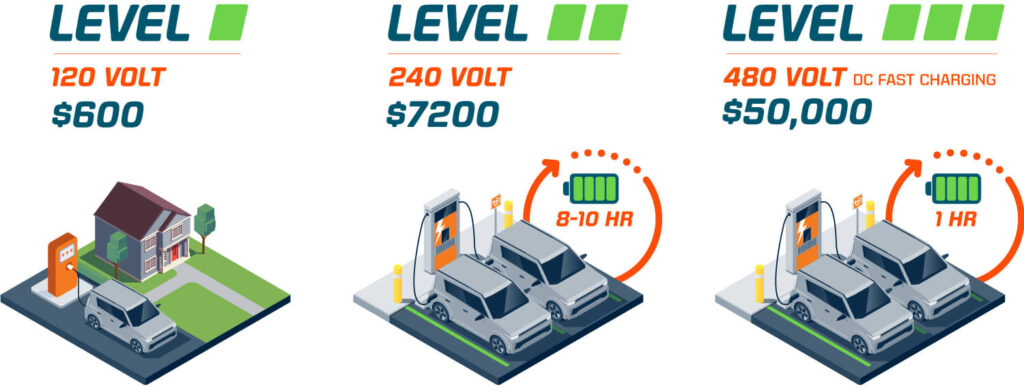

2.1 Types of EV Charging Stations- Voltage-Based

EV charging stations are primarily categorized by the operating voltage of the system, a classification that directly influences charging speed, power output, installation complexity, and overall application. Voltage-based classifications not only determine the type of equipment required but also shape the design of the electrical infrastructure, including conduit sizing and thermal management.

2.1.1 Level 1 (120V) Charging: Residential Applications

Level 1 charging operates on standard 120V AC power and is typically used for residential applications. This method is known for its ease of installation and minimal electrical modification requirements, often utilizing existing household outlets.

Power and Speed: Level 1 chargers usually deliver between 1.4 kW and 1.9 kW, which translates to adding approximately 3 to 5 miles of range per hour. While this is sufficient for overnight charging or low daily mileage, it is not ideal for quick turnaround situations.

Installation Considerations: Because Level 1 charging can often use a standard outlet, it is accessible and cost-effective. However, ensuring proper conduit routing even at these lower power levels remains important to protect wiring, especially in outdoor or semi-exposed settings.

2.1.2 Level 2 (240V) Charging: Commercial and Residential Hybrid Use

Level 2 charging operates on 240V AC, providing a significant boost in power compared to Level 1, making it versatile for both residential and commercial environments.

Enhanced Power Delivery: With power outputs typically ranging from 3.3 kW to 19.2 kW, Level 2 chargers can add about 10 to 60 miles of range per hour. This increased efficiency makes them attractive for daily commuting and worksite charging.

Electrical Infrastructure: The higher voltage demands dedicated circuits and, often, electrical panel upgrades. Conduit systems must be designed to handle higher current loads and provide proper insulation and heat dissipation.

2.1.3 DC Fast Charging (480V+): High-Power Commercial Installations

DC fast charging systems operate at voltages typically exceeding 480V and are engineered for rapid energy transfer, primarily in commercial and public settings.

Rapid Charging Capabilities: These chargers can deliver power outputs ranging from 50 kW to 350 kW (or more), enabling EV batteries to reach 80% charge in as little as 20–30 minutes. This speed is critical for highway rest stops, fleet depots, and urban transit hubs.

Direct Current Delivery: Unlike Level 1 and Level 2 chargers that supply AC power, DC fast chargers convert AC to DC within the charging station. This bypasses the vehicle’s onboard converter, allowing for much higher power levels and more efficient charging.

Operational Challenges: Given the intense power delivery, these systems must incorporate robust safety measures and real-time monitoring to manage thermal loads and ensure compliance with rigorous standards.

In the previous section, we categorized EV charging stations based on their power levels, ranging from residential Level 1 chargers to high-power DC fast chargers.

However, power capacity is only one aspect of classification. The selection of conduit for EV charging infrastructure must also consider the specific application area, installation site, and environmental conditions.

In the following sections, we will explore how these considerations influence conduit choices and installation best practices for different EV charging environments.

2.2 Application-Based Classifications

EV charging stations can also be categorized by their intended use, influencing conduit size, material, and installation requirements.

2.2.1 Residential Charging Stations: Low-Current Conduit Needs

• Typically Level 1 or Level 2 chargers installed in garages or driveways
• Lower power demands allow for smaller conduit sizes (e.g., ¾-inch or 1-inch PVC conduit).
• Minimal mechanical protection is needed unless the conduit is exposed to physical impact
• Local electrical codes may dictate burial depth for underground conduit runs

2.2.2 Commercial Charging Stations: High-Current and Scalable Infrastructure

• Often require multiple Level 2 or DC fast chargers for public use
• Conduit must support higher current loads, often necessitating metal conduit (IMC or RMC)
• Future expansion considerations require oversized conduits or empty conduits for additional wiring
• Outdoor installations demand weather-resistant and corrosion-resistant conduit materials

2.3 Installation Site Considerations

The physical location of an EV charging station directly affects conduit choice due to exposure to elements, accessibility, and safety requirements.

2.3.1 Indoor Charging Stations: Ventilation and Fire Safety

• Common in parking garages, residential basements, and commercial buildings
• Fire-resistant conduit materials, such as EMT (Electrical Metallic Tubing), may be required in enclosed areas
• Adequate ventilation is necessary to dissipate heat from high-power cables

2.3.2 Outdoor Charging Stations: Weatherproofing and Durability

• Exposed to rain, UV radiation, and extreme temperatures
• Requires liquid-tight flexible conduit or rigid non-metallic conduit with appropriate sealing
• Underground installations must adhere to burial depth requirements and use corrosion-resistant materials

3. Conduit Selection & Using for High-Power EV Charging Stations

3.1 Conduit Material Options

Selecting the appropriate conduit material is crucial for ensuring the safety, efficiency, and longevity of high-power EV charging stations. The choice depends on the installation environment, electrical load, and required durability. Conduit options typically fall into four broad categories: PVC conduits, Metal conduits, Fiberglass conduits, and Composite conduits (Liquid-Tight PVC + metal). Each type offers unique benefits and limitations, as outlined below.

3.1.1 PVC Conduits

PVC conduits are a popular choice for many EV installations due to their affordability and resistance to corrosion.

Advantages:

• Cost-Effective and Lightweight: PVC conduits are economical and easy to handle.
• Corrosion and Moisture Resistance: They offer excellent protection in environments where exposure to moisture is a concern.
• Ease of Installation: PVC is simple to cut, join, and install.

Limitations:

• Lower Impact Resistance: They are less durable in areas subject to physical impact.
• Temperature Sensitivity: PVC may deform under extreme temperature conditions unless specially formulated.
• UV Vulnerability: Outdoor installations require UV-rated PVC to prevent degradation from sunlight.

However, UPVC solar conduits are specifically engineered for environments with high sunlight exposure. Their superior UV resistance ensures that prolonged solar exposure does not degrade the material, making them ideal for outdoor charging stations and solar-powered applications. These conduits maintain their structural integrity and performance even under intense heat and radiation, reducing maintenance needs and extending service life.

3.1.2 Metal Conduits

Metal conduits provide robust protection and are essential in scenarios demanding high mechanical durability and fire resistance. They are available in several variants:

Types:

• Rigid Metal Conduit (RMC): Offers maximum physical protection.
• Intermediate Metal Conduit (IMC): A lighter alternative to RMC while maintaining substantial strength.
• Flexible Metal Conduit (FMC): Provides flexibility for installations requiring bends.

Advantages:

• Superior Mechanical Protection: Excellent resistance against physical damage.
• Fire Resistance: Their inherent fire-resistant properties are beneficial for safety.

Limitations:

• Heavier and More Expensive: They are costlier and can be challenging to install.
• Corrosion Risk: Exposure to corrosive environments necessitates corrosion-resistant coatings and proper grounding.

3.1.3 Fiberglass Conduits

Fiberglass conduits are constructed from glass fiber–reinforced polymers, offering a non-metallic alternative with exceptional environmental resilience.

Advantages:

• High Corrosion Resistance: They perform well in harsh, corrosive environments.
• Lightweight and Non-Conductive: Their reduced weight simplifies installation and minimizes issues related to electromagnetic interference.
• Thermal Stability: They maintain integrity under extreme temperature variations, which is critical for managing heat in high-power applications.

Limitations:

• Specialized Handling Requirements: Installation may demand careful handling and precision.
• Limited Availability: They are not as widely stocked as more conventional conduit materials.

3.1.4 Composite Conduits (Liquid-Tight PVC + Metal)

Composite conduits combine the benefits of both PVC and metal through a dual-layer design, typically engineered as liquid-tight solutions.

Advantages:

• Dual-Layer Protection: An inner PVC layer delivers excellent moisture and corrosion resistance, while an outer metal layer adds mechanical strength.
• Liquid-Tight Seal: The design prevents water, dust, and contaminants from entering, safeguarding the electrical integrity in wet or challenging environments.
• Enhanced Durability: This hybrid construction provides resilience in conditions where both environmental and physical protection are critical.

Limitations:

• Higher Cost: They are generally more expensive compared to single-material alternatives.
• Specialized Installation Requirements: Proper installation calls for compatible fittings and specialized expertise.

3.2 Specialized Conduit Solutions

For high-power EV charging installations, standard conduits might not always meet the unique environmental or operational challenges encountered in real-world applications. To address these challenges, specialized conduit solutions have been developed that ensure installations remain safe, durable, and compliant even under the most extreme conditions. This category now includes advanced materials such as LSZH conduit.

LSZH (Low Smoke Zero Halogen) conduits offer enhanced safety features, particularly in indoor or densely populated settings. In the event of a fire, LSZH materials emit minimal smoke and no halogen gases, significantly reducing the risk of toxic fumes and ensuring a safer environment for both users and equipment. This makes LSZH conduits a preferred choice where fire safety and environmental considerations are paramount.

3.3 Conduit Sizing and Ampacity Requirements

Proper conduit sizing is essential to ensure that high-power EV charging installations operate safely and efficiently. This involves calculating the available space for conductors (wire fill) and adjusting current-carrying capacities (ampacity) to account for installation conditions. Both calculations and regulatory requirements must be carefully considered to prevent overheating and ensure compliance with safety standards.

3.2.1 Calculating Wire Fill and Derating for High-Current Loads

When designing conduit systems for high-current applications, it is crucial to determine the appropriate conduit size by calculating the wire fill. This process involves comparing the total cross-sectional area of all the conductors to the internal cross-sectional area of the conduit. Overfilling a conduit can lead to increased friction during installation and inadequate heat dissipation, potentially causing insulation breakdown or electrical fires.

Total Conductor Area: Sum the cross-sectional areas of all cables to be run through the conduit.

Conduit Internal Area: Use manufacturer specifications to determine the internal cross-sectional area available.

Fill Percentage: Industry standards often restrict the fill to a maximum of 40% for power cables.

In addition to wire fill, derating factors are applied when multiple current-carrying conductors are present. Derating adjusts the ampacity (current-carrying capacity) of conductors to compensate for heat generated in confined spaces. Factors influencing derating include the number of conductors, ambient temperature, and the type of insulation used. Proper calculations help maintain a safe operating temperature and prevent overheating under continuous high-current loads.

3.2.2 NEC Compliance: Table 1 (40% Fill Rule) and Ampacity Tables

Compliance with the National Electrical Code (NEC) is paramount in conduit sizing for EV charging installations.

40% Fill Rule (NEC Table 1): This table stipulates that the cross-sectional area occupied by conductors should not exceed 40% of the conduit’s internal area for power cables. This rule helps maintain adequate space for heat dissipation and facilitates easier cable installation and maintenance.

Ampacity Tables: These tables specify the allowable current-carrying capacity for conductors based on their size, insulation type, and installation conditions. Designers use these tables to ensure that the chosen conductors can handle the expected electrical load, even after accounting for derating factors due to multiple cables or elevated ambient temperatures.

4. Installation Best Practices for High-Power Conduits in EV Charging Stations

4.1 Planning and System Design

In this initial phase, a detailed planning and design process sets the foundation for a robust charging station. It begins with a comprehensive load analysis that assesses the station’s overall power requirements, peak load demands, and anticipated usage. This analysis not only determines the immediate needs but also anticipates future expansion, ensuring that conduit and cable specifications will remain adequate over time.

Collaboration among electrical engineers, system designers, and regulatory authorities is crucial to integrate the conduit system seamlessly into the station’s overall layout. The design must focus on selecting conduits that are rated for high-current applications and are capable of handling the thermal, chemical, and environmental stresses encountered in real-world conditions, such as exposure to extreme temperatures and UV radiation.

4.2 Installation and Routing

Once the design parameters are established, the installation and routing phase takes precedence. This stage is centered on laying out the conduits in a manner that minimizes mechanical stress and maximizes efficiency. The conduits are installed along pathways designed to reduce unnecessary bends and avoid sharp angles, thereby protecting cable insulation and conductors from damage. Secure mounting is critical, as it prevents sagging and movement that could compromise both the physical integrity and the electrical performance of the system.

Moreover, the routing is planned to maintain clear separation from low-voltage or communication lines, which is essential to prevent electromagnetic interference. The installation process also involves the careful pulling of cables using techniques that preserve their integrity, ensuring that the high-power system functions safely and efficiently from the outset.

4.3 Environmental, Safety, and Compliance

The final phase focuses on environmental resilience, safety, and adherence to established standards. High-power conduits in EV charging stations must be protected against the elements; therefore, weatherproofing measures such as UV-resistant coatings and sealed joints are implemented to guard against moisture ingress and environmental wear. Thermal management is another key aspect, as the heat generated by high-power cables needs to be effectively dissipated through proper spacing and ventilation.

Alongside these technical measures, clear labeling and detailed documentation are maintained to facilitate ongoing maintenance and troubleshooting. Finally, the entire installation is rigorously aligned with local and national electrical codes, with regular inspections and a proactive maintenance schedule ensuring that the system remains safe, compliant, and reliable throughout its operational lifespan.

5. Conclusion

High-power EV charging infrastructure demands a careful balance of multiple factors—from material selection and precise conduit sizing to robust installation practices. As we’ve seen, the conduit system forms the backbone of these installations, and selecting the right material, size, and protective measures is critical for ensuring that the system performs safely and reliably over time.

Determining the most suitable electrical conduit is rarely a one-size-fits-all decision—it must be evaluated in conjunction with the unique factors of each project. Factors such as environmental conditions, installation location, current load, thermal management, safety requirements, and future scalability all play a critical role in this decision-making process.

Ultimately, the best conduit is not universally the “most advanced” or “most durable,” but rather the one that best matches the specific technical, safety, and economic requirements of your EV charging station project.
