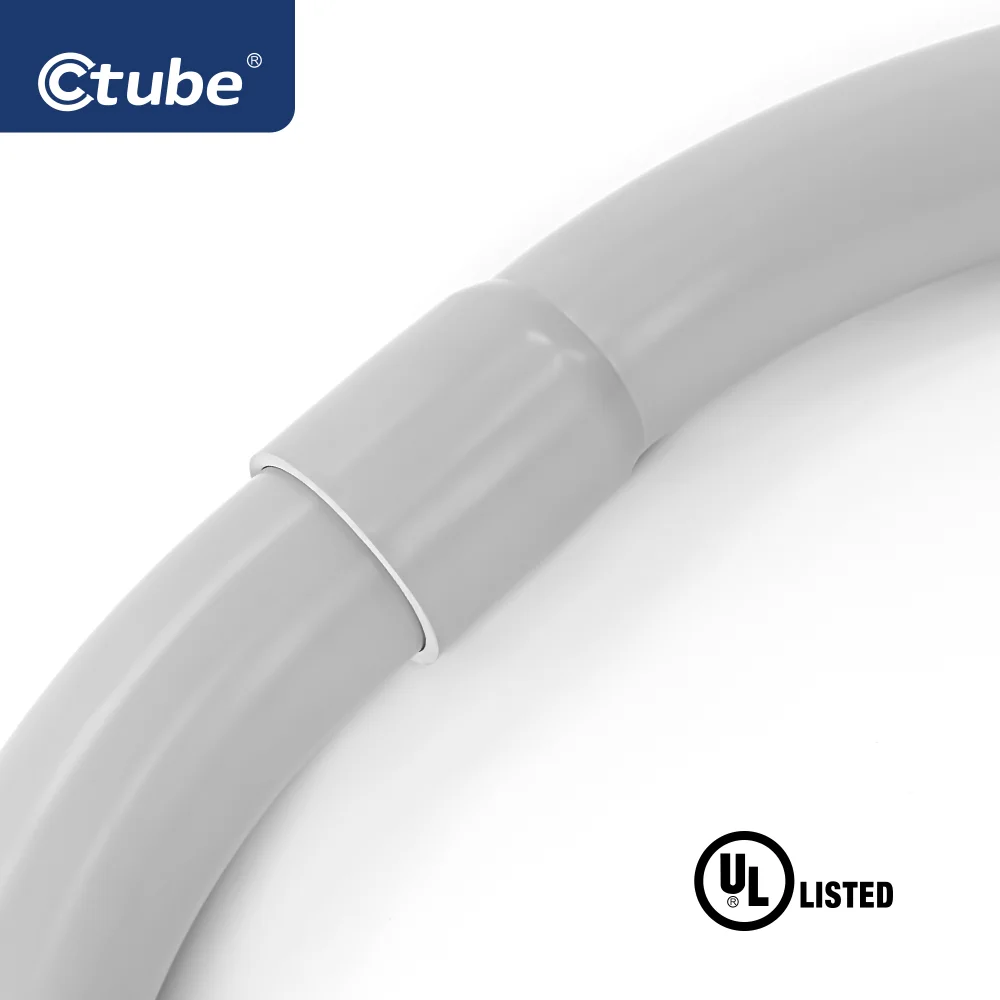

Ctube 90 Degree Schedule 40 PVC Belled End Bend Radius Elbow

Quality Certification:

– UL Listed

Product Details & Specifications

Sch40 Conduit PVC Elbow are for use in a non-metallic PVC conduit run when directional change is necessary.
1, Comply with UL651 . PVC schedule 40 construction
2, Size from 1/2” to 8”.
3, Designed for above-ground and below-ground applications
4, Durable and eco-friendy PVC, will not rust or corrode which is especially important in outdoor applications.
5, Sunlight resistant, ideal for both indoor and outdoor applications

Properties

Bending Load	Up to 4448N(1000 lbf)
Resistance to Crushing	Up to 166.7 lbf per linear
Heat-distortion	﹤15% with No Cracking
Water Absorption	﹤0.50% Weight
Flammability Test	Less Than 5 Seconds Continue to Flame
Extrusion/molding-process Test	No Flaking or Cracking
Fire Rating	UL 94V-0
Permanency of Printing	Yes
Rust & Sunlight Resistant	Yes
Color	Grey or Customization
Material	PVC
Customized Services	Available
Place of Origin	Dongguan, China
Shipping	By Sea
Samples	Available
Dimensions	1/2 to 8 inch

Size Chart

Size(in)	Item No.	A(in)	B(in)	R(in)
1/2	CT-SWB90A	0.84	1.5	4
3/4	CT-SWB90B	1.05	1.5	4.5
1	CT-SWB90C	1.315	1.875	5.75
1-1/4	CT-SWB90D	1.66	2	7.25
1-1/2	CT-SWB90E	1.9	2	8.25
2	CT-SWB90F	2.375	2	9.5
2-1/2	CT-SWB90G	2.875	3	10.5
3	CT-SWB90H	3.5	3.125	13
3-1/2	CT-SWB90I	4	3.25	15
4	CT-SWB90J	4.5	3.375	16
5	CT-SWB90K	5.563	3.625	24
6	CT-SWB90L	6.625	3.75	30
8	CT-SWB90M	8.625	6.5	35.5

Frequently Asked Questions

1.What is your MOQ?

Actually, It has always depend on your order quantity, different items have different minimum quantity . As for our conduits, it should be 3000 meters for big size ; and 5000 -10000 meters for small size. For junction box and other boxes ,the moq may be 5000 pcs and the fittings would be more than 10,000pcs

2.What is your delivery time?

Normally, the time of delivery is around 15-30 days. It depend on your order quantity. If you order a big quantity, it will take more time to finish.

3.What is your payment term?

Our company accepts normally T/T, and L/C payments. Call or email us if you need to use any new payment procedures.

4.Can I visit your facilities?

Yes, you are welcome to visit our company, and please make an appointment with us in advance;

5. How about free sample?

Yes,of course.We offer free samples.

6.What are your main products?

Besides Solar PVC conduits and fittings. Also offer UL listed and CSA electrical pvc conduit; AS/NZS 2053 conduit &fittings; Low smoke and halogen free conduit& fittings; BS conduit &fittings.

6.Where is your factory located？

We have manufacturing bases in Dongguan City and Shaoguan City of China
